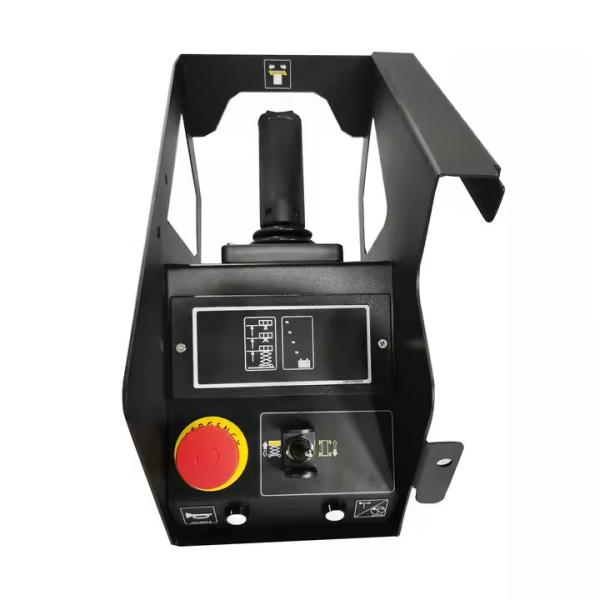

Product Introduction: JLG Control Box (PCU) - Part # 1001215013 / 1001215013S

Title: Genuine JLG PCU Control Box for 1532R and 1932R Scissor Lift Models

Product Overview:

The JLG Control Box, with part numbers 1001215013 and 1001215013S, is a critical electrical component designed specifically for the JLG 1532R and 1932R scissor lift models. This unit, often referred to as the Platform Control Unit (PCU) or Ground Control Box, serves as the primary interface and control hub for operating the lift from the platform.

It is an essential, factory-authorized replacement part that ensures the safe, reliable, and precise operation of your JLG equipment.

Key Features & Functions:

1. Centralized Control Hub:

   • Acts as the main processing unit for control signals originating from the platform. It houses the control switches, emergency stop button, and often the hydraulic function controls.

2. Operator Interface:

   • Provides the operator in the platform with intuitive controls for raising/lowering the lift, driving forward/reverse, and steering. The integrated emergency stop button allows for immediate shutdown in case of a hazard.

3. Safety System Integration:

   • This PCU is integral to the machine's safety system. It interfaces with sensors, limit switches, and the emergency stop circuit. A malfunctioning control box can compromise the entire safety system of the lift.

4. Genuine JLG Part:

   • As a genuine JLG component (part numbers 1001215013 / 1001215013S), it is engineered to meet exact OEM specifications for fit, form, and function. This guarantees perfect compatibility and optimal performance with your JLG 1532R or 1932R scissor lift.

5. Reliability and Durability:

   • Built to withstand the harsh conditions of construction and industrial environments, including vibration, dust, and moisture, ensuring long-term reliability.

Common Symptoms of a Failing Control Box:

• Intermittent or No Response from platform controls.

• The scissor lift moves erratically or does not drive/raise as commanded.

• Error Codes or malfunction indicators related to the control system.

• Physical Damage to the box, such as cracked housing, corroded connectors, or faulty buttons.

Compatibility:

• Primary Models: JLG 1532R, JLG 1932R

• Part Numbers: 1001215013, 1001215013S (The "S" suffix may indicate a service part or a specific revision, but it is a direct replacement for the original 1001215013).

Why Choose This Genuine JLG PCU?

Using this genuine JLG Control Box ensures:

• Operator Safety: Restores the lift to its original, safe operating condition.

• Machine Uptime: Minimizes downtime by providing a reliable, plug-and-play solution.

• Warranty Protection: Maintains the machine's warranty and compliance with safety standards.

• Peak Performance: Guarantees that all control functions operate smoothly and precisely as designed by JLG.

Conclusion:

The JLG Control Box PCU (1001215013 / 1001215013S) is a vital component for maintaining the functionality and safety of your JLG scissor lift. Replacing a faulty unit with this genuine part is the most reliable way to ensure your equipment continues to operate efficiently and safely on the job site.
